CVD Nano dies for high tensile steel wire and strand

PC Strand



High carbon 7-wire strand, low-relaxation, for post-tensioned and pre-tensioned concrete – Prestressing.

designation φmm MPa g/m Mm2 FmkN FmmaxkN PF0,1kN
Y1860 S7 9.3 1860 406.1 52 96.7 111 85.1
Y1860 S7 12.9 1860 781 100 186 214 164
Y1860 S7 15.2 1860 1086 1.39 259 298 228
Y1860 S7 15.7 1860 1172 150 279 321 246

7-wire strand: a straight core wire (king-wire) around which are spun six wires (outer helical wires) in one layer.
7 wire strand 7 wire strand 2



Coil size and presentation

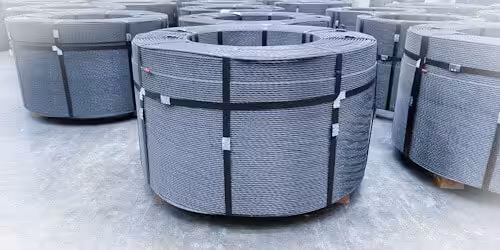

high tensile steel wire - Coil 3200kgs

high tensile steel wire – Coil 3200kgs

Ø Outer – Ø1 Ø Inner – Ø2 Height – H Height – H2
1250 mm 750 mm 760 mm 860 mm

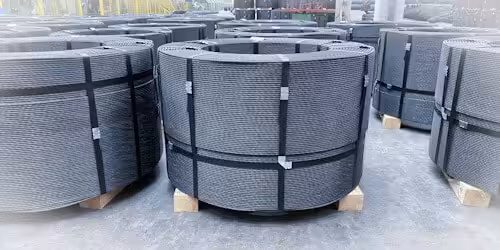

high tensile steel wire - Coil 4000kgs

high tensile steel wire – Coil 4000kgs

Ø Outer – Ø1 Ø Inner – Ø2 Height – H Height – H2
1350 mm 750 mm 760 mm 860 mm



Coil size and presentation



Below is the ratio of the wire drawing dies, from 11.0-8.8, we use separate pressure dies(The purpose of using pressure dies for the first three positions is the wire strength is very strong, using pressure die can do a pre-treatment, and to increase the powder effect, to improve the lifespan), from 7.95-5.03 we use Nano dies, the capacity is around 700tons.

9,80 8,80 7,95 7,25 6,65 6,15 5,70 5,03
Angle 12 10 10 10 8 8 8 10
input 11,00 9,80 8,80 7,95 7,25 6,65 6,15 5,70
output 9,80 8,80 7,95 7,25 6,65 6,15 5,70 5,03
% reduction 0,20628 0,19367 0,18385 0,16835 0,15867 0,14472 0,14099 0,22127
angle: α 6 5 5 5 4 4 4 5
α radian 0,10472 0,08727 0,08727 0,08727 0,06981 0,06981 0,06981 0,08727
DELTA (Full) 1,81 1,62 1,72 1,89 1,62 1,79 1,84 1,40



For more information about CVD Nano dies, please contact us.
