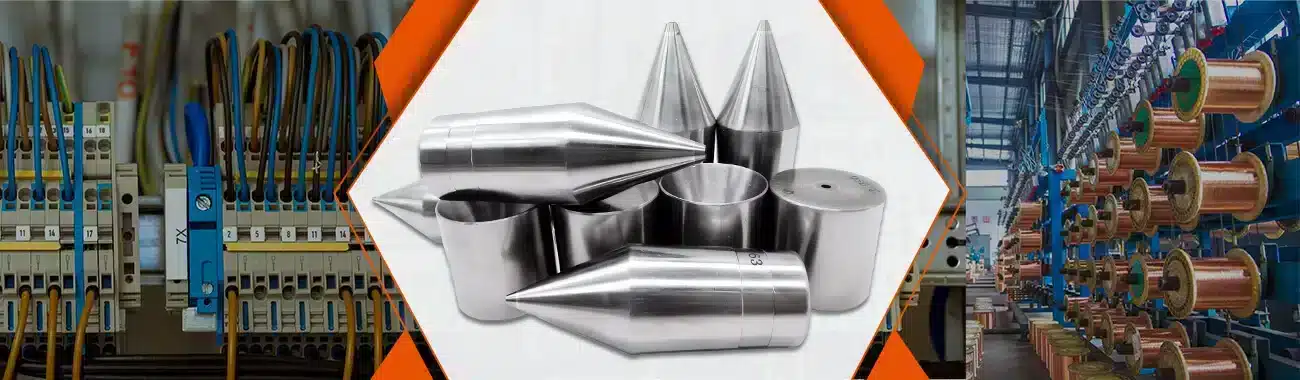

Extrusion Dies/Tips
Extruding die is used for the copper wire of cables. The material includes PCD, tungsten, and mold steel. We can produce extruding die as your drawing requirement.
| Full Name: | Extrusion Dies/Tips/Nipple |
|---|---|
| Size: | Hole 0.3-up to 25mm (larger or smaller size customized according to customer requirements)Custom made to your specifications |
| Material: | Stainless steel outer case+ Tungsten carbide/PCD/Nano coating die blank |
Description
| Full Name: | Extrusion Dies/Tips/Nipple |
|---|---|
| Size: | Hole 0.3-up to 25mm (larger or smaller size customized according to customer requirements)Custom made to your specifications |
| Material: | Stainless steel outer case+ Tungsten carbide/PCD/Nano coating die blank |
The Description of Extrusion Dies/Tips.
The extrusion die is a thick circular steel disc containing one or more openings to produce the desired profile. They are usually made of H-13 die steel and are heat treated to withstand the pressure and heat of hot aluminium as it passes through the die.
The advantages of Extrusion dies
- 1、Great wear resistance and concentricity.
- 2、Aging resistance, Chemical resistance.
- 3、Can extrude Wire & Cable, Hoses, Piping, Profiles, Medical Tubing or Consumer Products.
- 4、Long service life with factory price, advanced equipment.
The specification of Extrusion dies.
| Material | Hole Size (Inch) | Hole size (mm) |
| Single crystal diamond | 0.012-0.036in | 0.30-0.90mm |
| Polycrystalline diamond | 0.012-0.093in | 0.30-2.36mm |
| Tungsten carbide | 0.020-0.500in | 0.50-12.5mm |
| Tool steel | up to 1.0in | up to 25mm |
The application of Extrusion Tips.
Application scope of extrusion guide die:
wire and cable, local telephone communication cable, optical cable and other cable manufacturing, wire and cable extrusion, etc.
