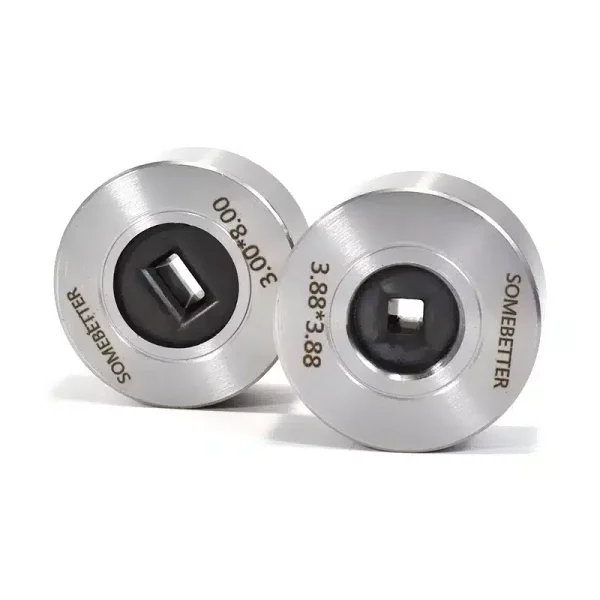

Shaped PCD wire drawing dies
Our company offers special-shaped wire drawing dies with two options for customers: hard alloys and PCD polycrystals.
| Full Name: | Shaped wire drawing dies, special-shaped dies |
|---|---|
| Size: | Hole 0.10-20.00mm (larger or smaller size customized according to customer requirements) |
| Geometry： | Triangular, square, rectangular, hexagonal, oval, trapezoidal, bowed and other irregular shapes. |
Description
| Full Name: | Shaped wire drawing dies, special-shaped dies |
|---|---|
| Size: | Hole 0.10-20.00mm (larger or smaller size customized according to customer requirements) |
| Geometry： | Triangular, square, rectangular, hexagonal, oval, trapezoidal, bowed and other irregular shapes. |
Our company offers special-shaped wire drawing dies with two options for customers: hard alloys and PCD polycrystals.
PCD polycrystalline dies outperform hard alloys several times, providing advantages such as high wear resistance, dimensional stability, and a smooth finish.
These special-shaped dies are suitable for drawing nonferrous and ferrous metals into unique wire shapes, including enamelled electromagnetic flat wires, stainless steel-shaped wires, jewellery wires, electronic components, and tool wrenches.
Shaped PCD wire drawing dies

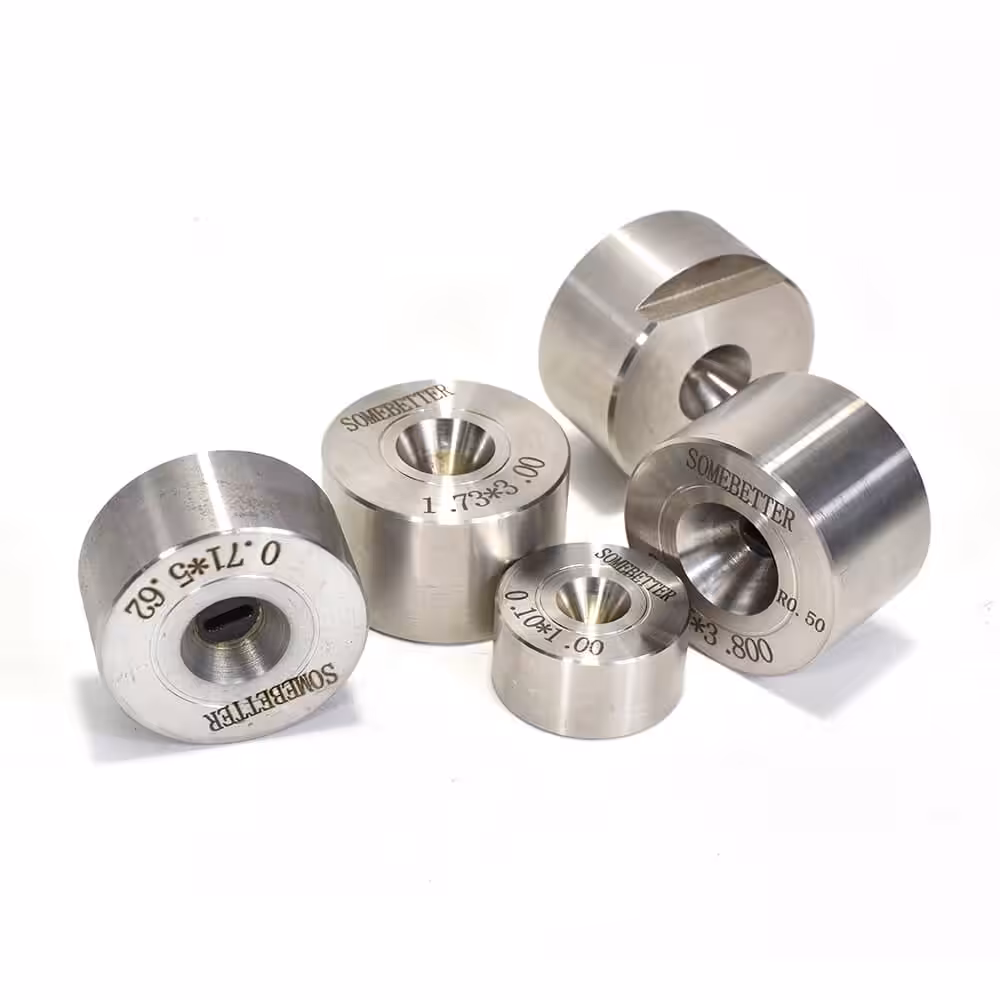

Shaped wire drawing dies offer a wide range of hole shapes: triangular, square, rectangular, hexagonal, oval, trapezoidal, bowed, and other irregular shapes.
| Product Specification Sheet | ||||
| Tangential circle diameter | tolerance | Core Size | 单位：mm | |
| Minimum circumscribed circle | Maximum outside cut garden | case size | ||
| 0.10 | 0.80 | ±0.003 | 4*2 | 28 * 13 |
| 0.81 | 1.50 | ±0.003 | 5.2*2.5 | 28 * 13 |
| 1.51 | 1.80 | ±0.003 | 6*4 | 30 * 14 |
| 1.81 | 2.00 | ±0.003 | 8*4 | 32 * 16 |
| 2.01 | 2.25 | ±0.003 | 9*5 | 40 * 26 |
| 2.26 | 2.50 | ±0.003 | 10*6 | 40 * 26 |
| 2.51 | 2.75 | ±0.003 | 12*6 | 40 * 26 |
| 2.76 | 3.50 | ±0.003 | 13*8 | 40 * 27 |
| 3.51 | 4.50 | ±0.003 | 14*10 | 40 * 28 |
| 4.51 | 5.00 | ±0.003 | 16*10 | 40 * 28 |
| 5.01 | 6.00 | ±0.003 | 18*10 | 45 * 28 |
| 6.01 | 8.00 | ±0.003 | 20*12 | 45 * 30 |
| 8.01 | 10.00 | ±0.003 | 22*14 | 55 * 35 |
| 10.01 | 13.00 | ±0.003 | 25*16 | 60 * 38 |
| 13.01 | 16.00 | ±0.003 | 30*20 | 70 * 42 |
| 16.01 | 20.00 | ±0.003 | 40*25 | 80 * 45 |
For other sizes or shapes, please contact us.
