Silicon-based PCD Dies
Silicon-based thermally stable diamond polycrystals PCD die blanks use silicon as a binder to form silicon carbide on the carbon atoms on the surface of silicon and diamond, connecting the diamond particles and particles. Since there is no metal adhesive in the silicon-based PCD core material, the material can still maintain good thermal stability at 1000 ° C, but its processability is relatively poor.
| Full Name: | PCD Silicon-based drawing dies(Polycrystalline diamond Si-based wire drawing die） |
|---|---|
| Size: | Hole 0.04mm-35mm (larger or smaller size customized according to customer requirements) |
| Material: | Stainless steel outer case+Diamond (Si base)die blank |
Description
| Full Name: | PCD Silicon-based drawing dies(Polycrystalline diamond Si-based wire drawing die） |
|---|---|
| Size: | Hole 0.04mm-35mm (larger or smaller size customized according to customer requirements) |
| Material: | Stainless steel outer case+Diamond (Si base)die blank |
The Description of PCD Silicon-based drawing dies.
Silicon-based thermally stable diamond polycrystals PCD die blanks use silicon as a binder to form silicon carbide on the carbon atoms on the surface of silicon and diamond, connecting the diamond particles and particles. Since there is no metal adhesive in the silicon-based PCD core material, the material can still maintain good thermal stability at 1000 ° C, but its processability is relatively poor.
The Advantages of PCD Silicon-based drawing dies.
- High hardness, good wear resistance, and high efficiency.
- The wire remains round, even with significant die wear.
- Available in any casing size.
- Perfect characteristics of crack proof.
- Smoothness and durability are predicted.
- Strong impact resistance and long service life.
- Dies available for high-temperature applications.
- High precision tolerance.
The Specification of PCD Silicon-based drawing dies.

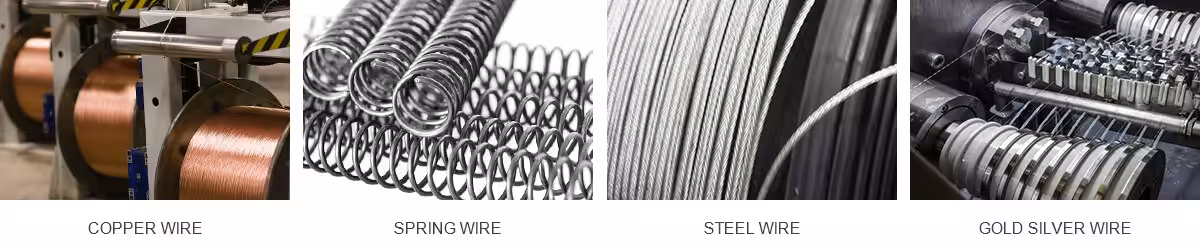

The Application of PCD Silicon-based drawing dies.
It can be used in all wet and dry drawing processes and is suitable for all applications, from large drawing to ultra-fine drawing.
Flexible wire: copper wire, aluminum wire, brass wire, gold wire, aluminum magnesium alloy, copper-clad steel wire, etc.
Hardwire: stainless steel wire, copper-plated steel wire, copper-plated wire, tungsten wire, molybdenum wire, cutting wire, chromium wire, nickel wire, etc.
Test report of PCD Silicon-based drawing dies.
Report viewing and downloading： Quality inspection report of PCD wire drawing die Conoptica.pdf
